ROPEWATCHER-MC

Mobile Solutions

For good lifting, cableways and custom solutions

Device able to perform non-destructive tests on wire ropes with diameter ranging from 6 to 170 mm.

The device works only on ferromagnetic ropes.

The system measures LF and LMA signals, detecting internal and external faults, such as broken wires, corrosion, wear and fretting fatigue.

dowload technical data

ROPEWATCHER-MC22

Device able to perform non-destructive tests on wire ropes with diameter ranging from 6 to 22 mm.

Weight

8 kg

Number of ropes that can check simultaneously

1

Dimensions

30 × 30 × 20 cm

Encoder and centering system

Optional

IP

66

Compliance with EN12927

Yes

Sensore kit
Standard range

22 - 14 mm

Minimum diameter that can be checked (with reduction kit)

6 mm

Number of reduction kits

1

Tool features
Field source

Permanent magnets (NdFeB)

Signal accuracy

Compliant with EN12927

Type of sensors

Coils; Hall Effect Sensors

Max inspection speed 0,02 — 30 m/s

Standard speed range, higher than 8 m/s upon request

Type of signal

LF and LMA

Certification

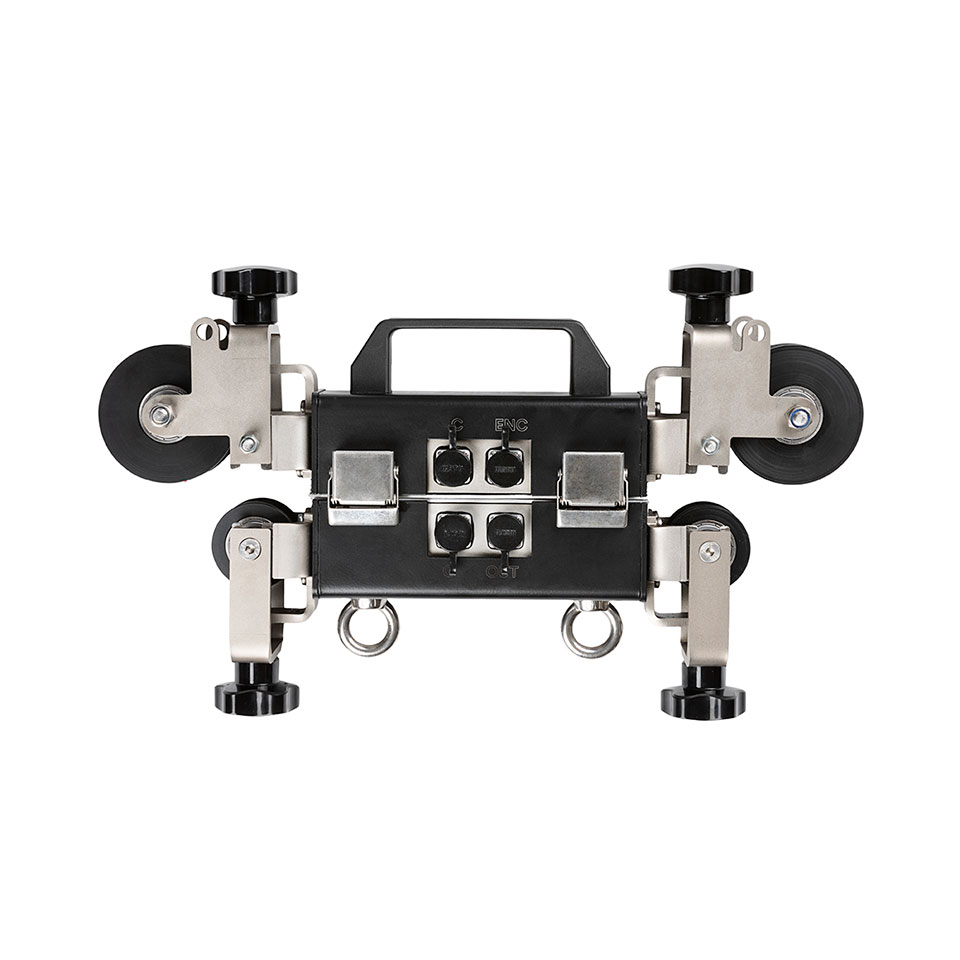

ROPEWATCHER-MC40

Device able to perform non-destructive tests on wire ropes with diameter ranging from 22 to 40 mm.

Main features are:

  • Internal centering system (mechanically guided by wheels) that improves signal quality and friction reduction in the bushings;
  • fully integrated Encoder system that localizes the fault.
Weight

20 kg

Number of ropes that can check simultaneously

1

Dimensions

46 × 28 × 12 cm

Encoder and centering system

Included

IP

66

Compliance with EN12927

Yes

Sensore kit
Standard range

40 mm

Minimum diameter that can be checked (with reduction kit)

20 mm

Number of reduction kits

2

Tool features
Field source

Permanent magnets (NdFeB)

Signal accuracy

Compliant with EN12927

Type of sensors

Coils; Hall Effect Sensors

Max inspection speed 0,02 — 30 m/s

Standard speed range, higher than 8 m/s upon request

Type of signal

LF and LMA

Certification

ROPEWATCHER-MC65

Device able to perform non-destructive tests on wire ropes with diameter ranging from 40 to 65 mm.

Main features are:

  • Internal centering system (mechanically guided by wheels) that improves signal quality and friction reduction in the bushings;
  • fully integrated Encoder system that localizes the fault.
Weight

32 kg

Number of ropes that can check simultaneously

1

Dimensions

75 × 55 × 45 cm

Encoder and centering system

Included

IP

66

Compliance with EN12927

Yes

Sensore kit
Standard range

65 - 40 mm

Minimum diameter that can be checked (with reduction kit)

20 mm

Number of reduction kits

2

Tool features
Field source

Permanent magnets (NdFeB)

Signal accuracy

Compliant with EN12927

Type of sensors

Coils; Hall Effect Sensors

Max inspection speed 0,02 — 30 m/s

Standard speed range, higher than 8 m/s upon request

Type of signal

LF and LMA

Certification

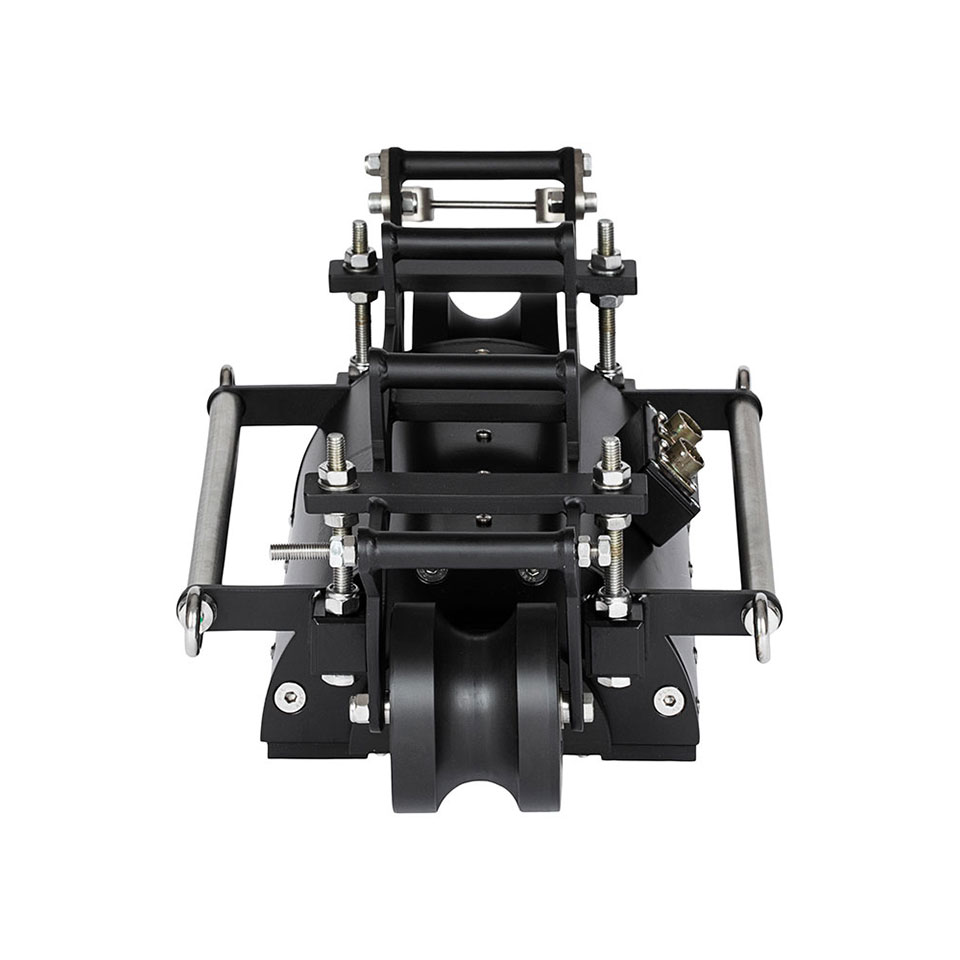

ROPEWATCHER-MCO

Device able to perform non-destructive tests on wire ropes with diameter ranging from 30 to 80 mm.

Main features are:

  • Internal centering system (mechanically guided by wheels) that improves signal quality and friction reduction in the bushings;
  • fully integrated Encoder system that localizes the fault.
Weight

Depending on dimensions

Number of ropes that can check simultaneously

1

Dimensions

Depending on rope dimensions

Encoder and centering system

Included

IP

66

Compliance with EN12927

Yes

Sensore kit
Standard range

To be defined with the customer

Minimum diameter that can be checked (with reduction kit)

To be defined with the customer

Compliance with EN12927

To be defined with the customer

Tool features
Field source

Permanent magnets (NdFeB)

Signal accuracy

Compliant with EN12927

Type of sensors

Coils; Hall Effect Sensors

Max inspection speed 0,02 — 6 m/s

Max inspection speed 0,02 — 6 m/s

Type of signal

LF
