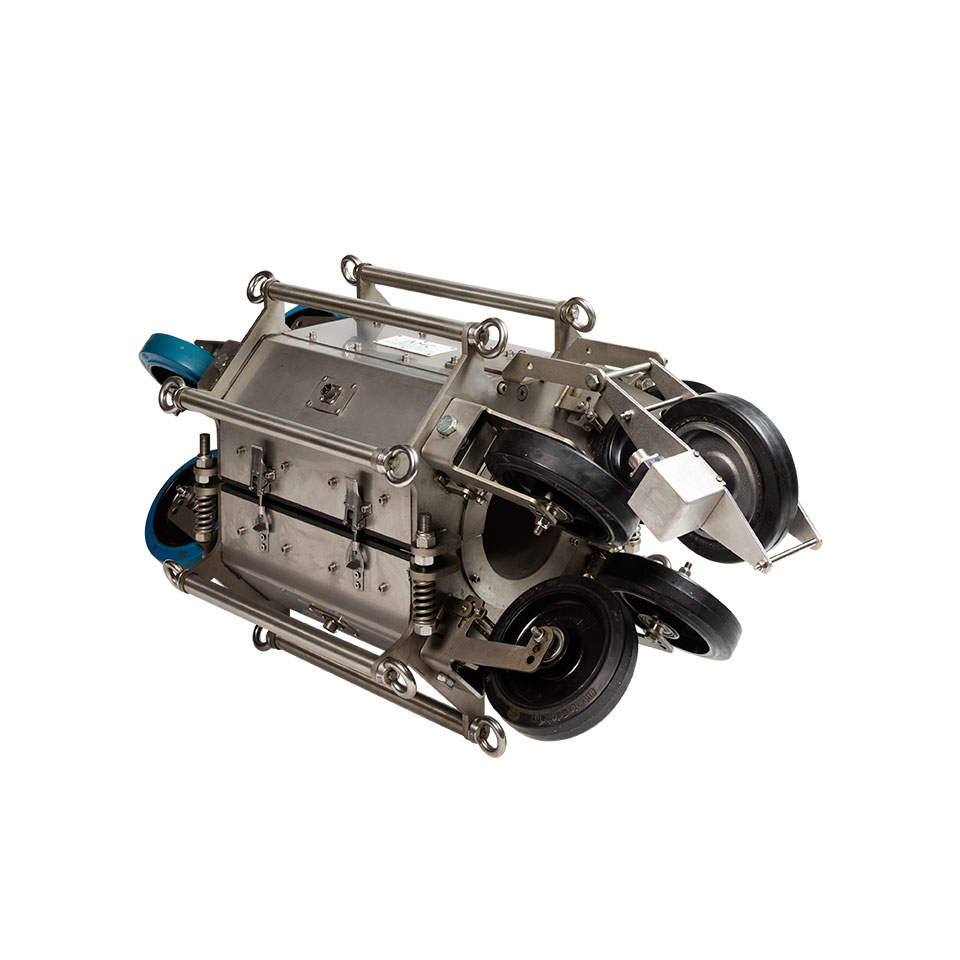

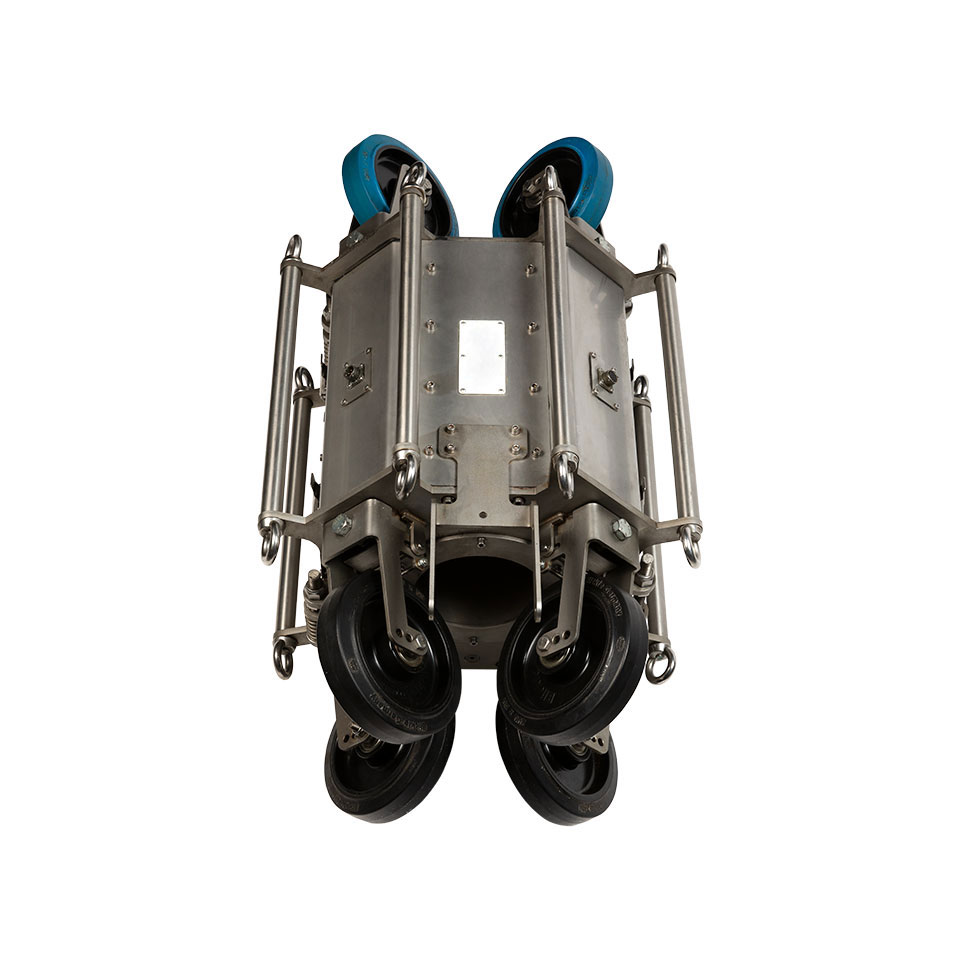

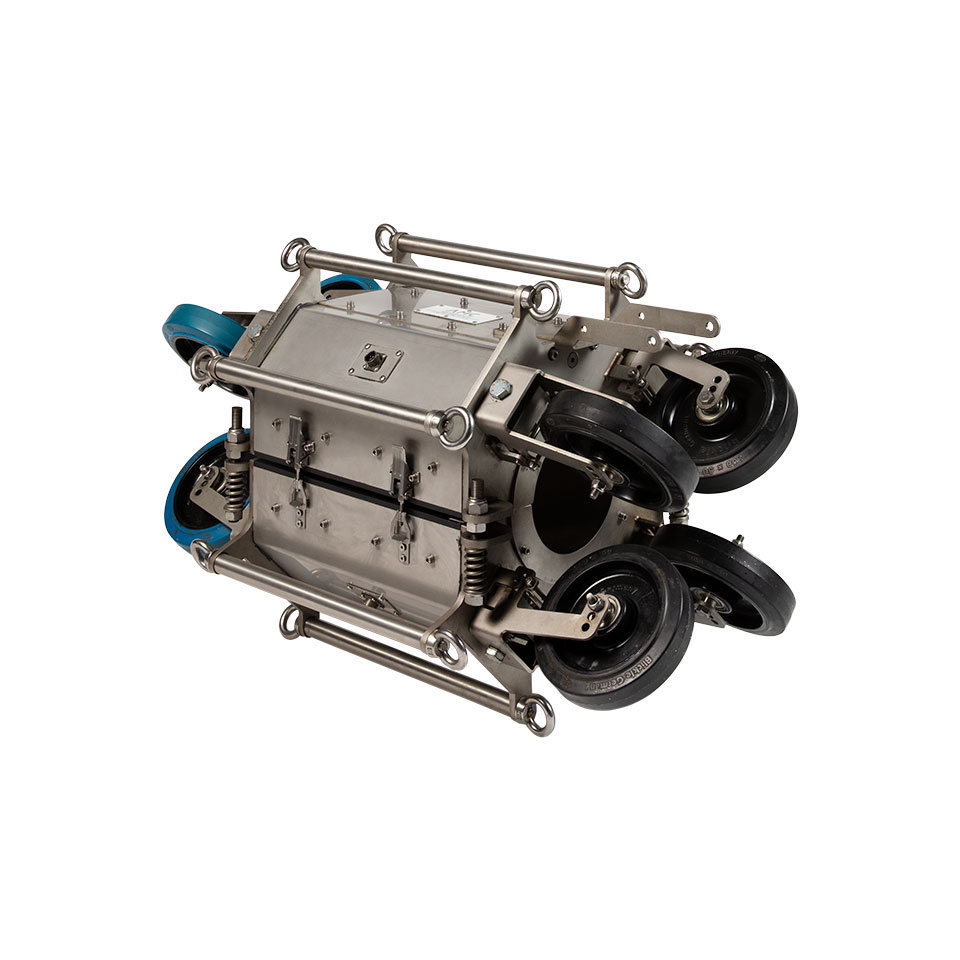

ROPEWATCHER-M

For good lifting, cableways and custom solutions

Device able to perform non-destructive tests on wire ropes with diameter ranging from 6 to 170 mm

The device works only on ferromagnetic ropes.

The system measures LF and LMA signals, detecting internal and external faults, such as broken wires, corrosion, wear and fretting fatigue.

Explore Features

dowload technical data

ROPEWATCHER-M22

Device able to perform non-destructive tests on wire ropes with diameter ranging from 6 to 22 mm.

Weight

8 kg

Number of ropes that can check simultaneously

Dimensions

30 × 30 × 20 cm

Encoder and centering system

Optional

IP

Compliance with EN12927

Yes

Sensore kit

Standard range

22 - 14 mm

Minimum diameter that can be checked (with reduction kit)

6 mm

Number of reduction kits

Tool features

Field source

Permanent magnets (NdFeB)

Signal accuracy

Compliant with EN12927

Type of sensors

Coils; Hall Effect Sensors

Max inspection speed 0,02 — 30 m/s

Standard speed range, higher than 8 m/s upon request

Type of signal

LF; LMA (upon request)

Certification

ROPEWATCHER-M40

Device able to perform non-destructive tests on wire ropes with diameter ranging from 22 to 40 mm.

Main features are:

Internal centering system (mechanically guided by wheels) that improves signal quality and friction reduction in the bushings;
fully integrated Encoder system that localizes the fault.

Weight

20 kg

Number of ropes that can check simultaneously

Dimensions

46 × 28 × 12 cm

Encoder and centering system

Included

IP

Compliance with EN12927

Yes

Sensore kit

Standard range

40 mm

Minimum diameter that can be checked (with reduction kit)

20 mm

Number of reduction kits

Tool features

Field source

Permanent magnets (NdFeB)

Signal accuracy

Compliant with EN12927

Type of sensors

Coils; Hall Effect Sensors

Max inspection speed 0,02 — 30 m/s

Standard speed range, higher than 8 m/s upon request

Type of signal

LF; LMA (upon request)

Certification

ROPEWATCHER-M65

Device able to perform non-destructive tests on wire ropes with diameter ranging from 40 to 65 mm.

Main features are:

Internal centering system (mechanically guided by wheels) that improves signal quality and friction reduction in the bushings;
fully integrated Encoder system that localizes the fault.

Weight

32 kg

Number of ropes that can check simultaneously

Dimensions

75 × 55 × 45 cm

Encoder and centering system

Included

IP

Compliance with EN12927

Yes

Sensore kit

Standard range

65 - 40 mm

Minimum diameter that can be checked (with reduction kit)

20 mm

Number of reduction kits

Tool features

Field source

Permanent magnets (NdFeB)

Signal accuracy

Compliant with EN12927

Type of sensors

Coils; Hall Effect Sensors

Max inspection speed 0,02 — 30 m/s

Standard speed range, higher than 8 m/s upon request

Type of signal

LF; LMA (upon request)

Certification

ROPEWATCHER-M80

Device able to perform non-destructive tests on wire ropes with diameter ranging from 60 to 80 mm.

Main features are:

Segnale LF e LMA acquisito digitalmente;
Internal centering system (mechanically guided by wheels) that improves signal quality and friction reduction in the bushings;
fully integrated Encoder system that localizes the fault

Weight

55 kg

Number of ropes that can check simultaneously

Dimensions

60 × 32 × 40 cm

Encoder and centering system

Included

IP

Compliance with EN12927

Yes

Sensore kit

Standard range

80 mm

Minimum diameter that can be checked (with reduction kit)

40 mm

Number of reduction kits

Tool features

Field source

Permanent magnets (NdFeB)

Signal accuracy

Compliant with EN12927

Type of sensors

Coils; Hall Effect Sensors

Max inspection speed 0,02 — 30 m/s

Standard speed range, higher than 8 m/s upon request

Type of signal

LF; LMA (upon request)

Certification

ROPEWATCHER-M120

Device able to perform non-destructive tests on wire ropes with diameter ranging from 90 to 120 mm.

Main features are:

Digital acquisition of LF and LMA signals;
Internal centering system (mechanically guided by wheels) that improves signal quality and friction reduction in the bushings;
Fully integrated Encoder system that localizes the fault.

Weight

100 kg

Number of ropes that can check simultaneously

Dimensions

65 × 45 × 40 cm

Encoder and centering system

Included

IP

Compliance with EN12927

Yes, up to 120 mm (max diameter that can be certified)

Sensore kit

Standard range

100 – 120 mm

Minimum diameter that can be checked (with reduction kit)

80 mm

Number of reduction kits

Number of reduction kits:

Tool features

Field source

Permanent magnets (NdFeB)

Signal accuracy

Compliant with EN12927 and ASTM E1571

Type of sensors

Coils; Hall Effect Sensors

Max inspection speed 0,02 — 30 m/s

Standard speed range, higher than 8 m/s upon request

Type of signal

LF; LMA (upon request)

Certification

ROPEWATCHER-M150 / M170

Device able to perform non-destructive tests on wire ropes with diameter ranging from 90 to 170 mm.

Main features are:

Digital acquisition of LF and LMA signals;
Internal centering system (mechanically guided by wheels) that improves signal quality and friction reduction in the bushings;
Fully integrated Encoder system that localizes the fault.

Weight

200 kg

Number of ropes that can check simultaneously

Dimensions

985 × 550 × 520cm

Encoder and centering system

Included

IP

Compliance with EN12927

Yes, up to 120 mm (max diameter that can be certified)

Sensore kit

Standard range

170 - 130 - 110 mm

Minimum diameter that can be checked (with reduction kit)

90 mm

Number of reduction kits

Depending on the larger diameter

Tool features

Field source

Permanent magnets (NdFeB)

Signal accuracy

Compliant with EN12927 and ASTM E1571

Type of sensors

Coils; Hall Effect Sensors

Max inspection speed 0,02 — 30 m/s

Standard speed range, higher than 8 m/s upon request

Type of signal

LF; LMA (upon request)

Certification
